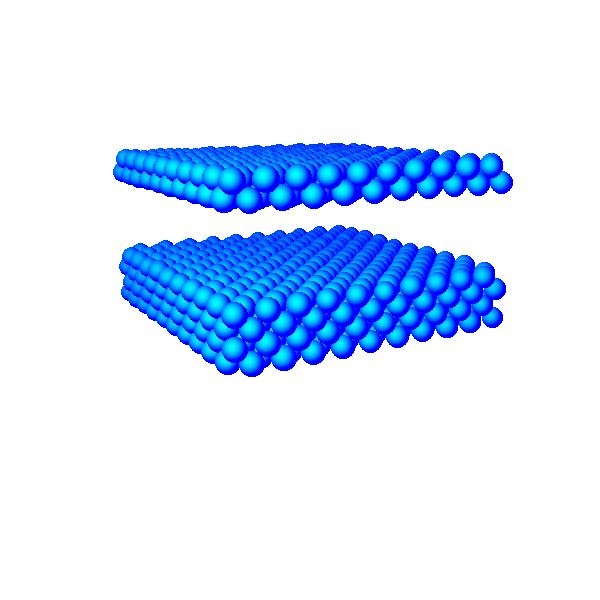

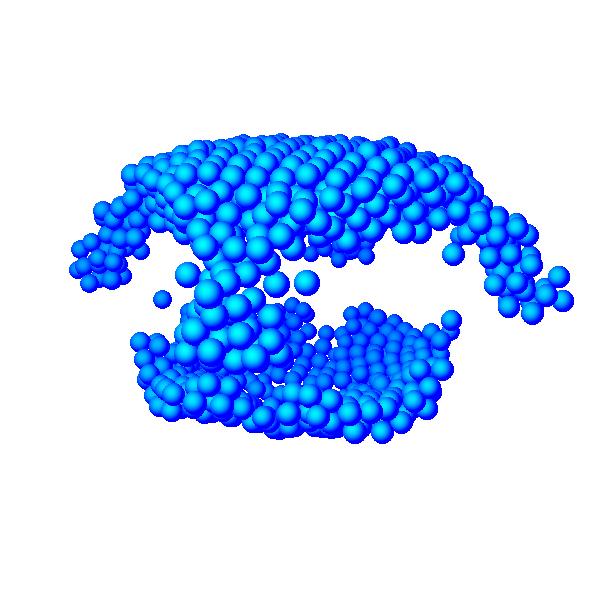

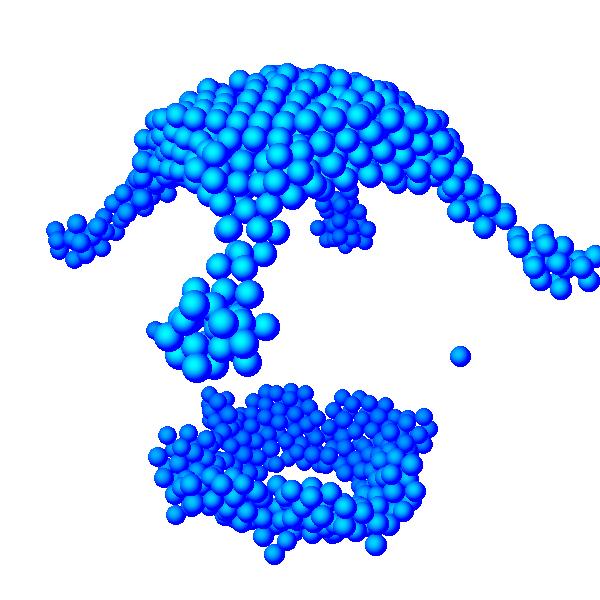

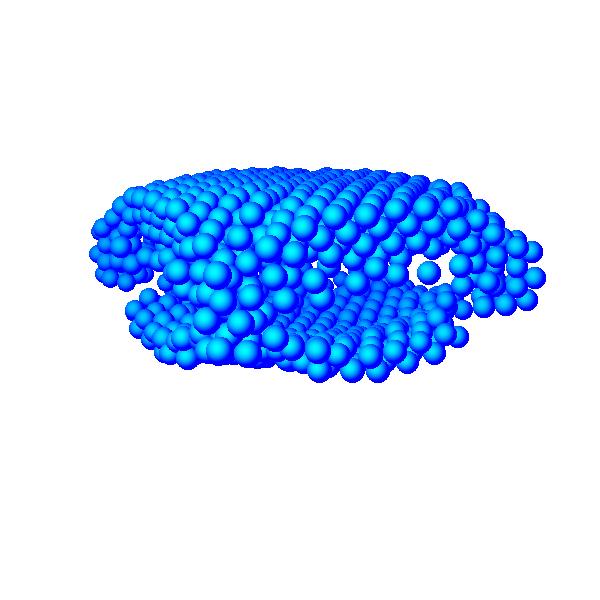

This is plate impact experiment. Thin plate moves with a high velocity towards a thick plate from the same material. After impact these plates join, but in the middle of the thick plate appears a spall crack, which leads to separation of so called spall plate, which usually has same thickness as the thin plate.
 |
 |
 |
 |

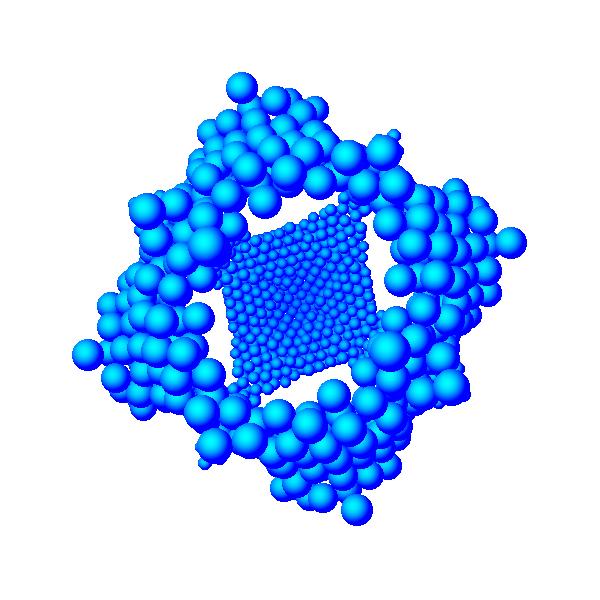

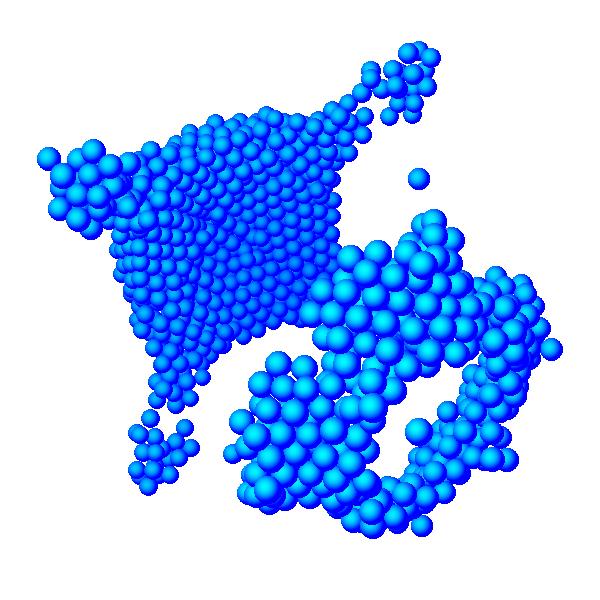

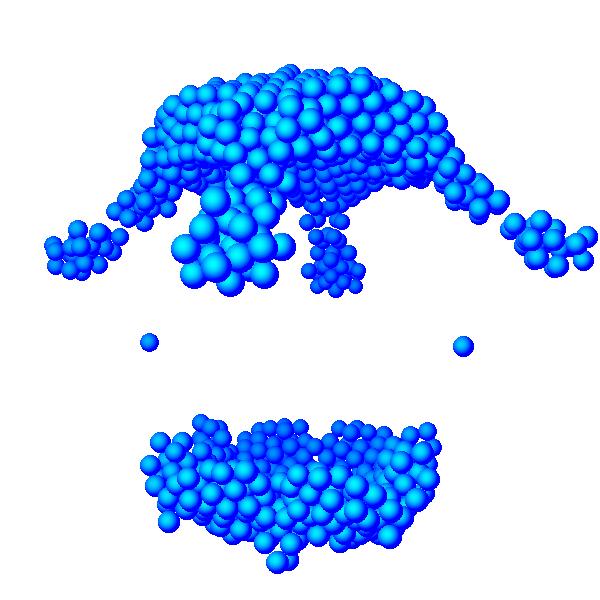

And this is the same result from different directions of view. Please note the axial hole, which appears in the centre of the spall plate.
|
 |
 |
 |
 |
